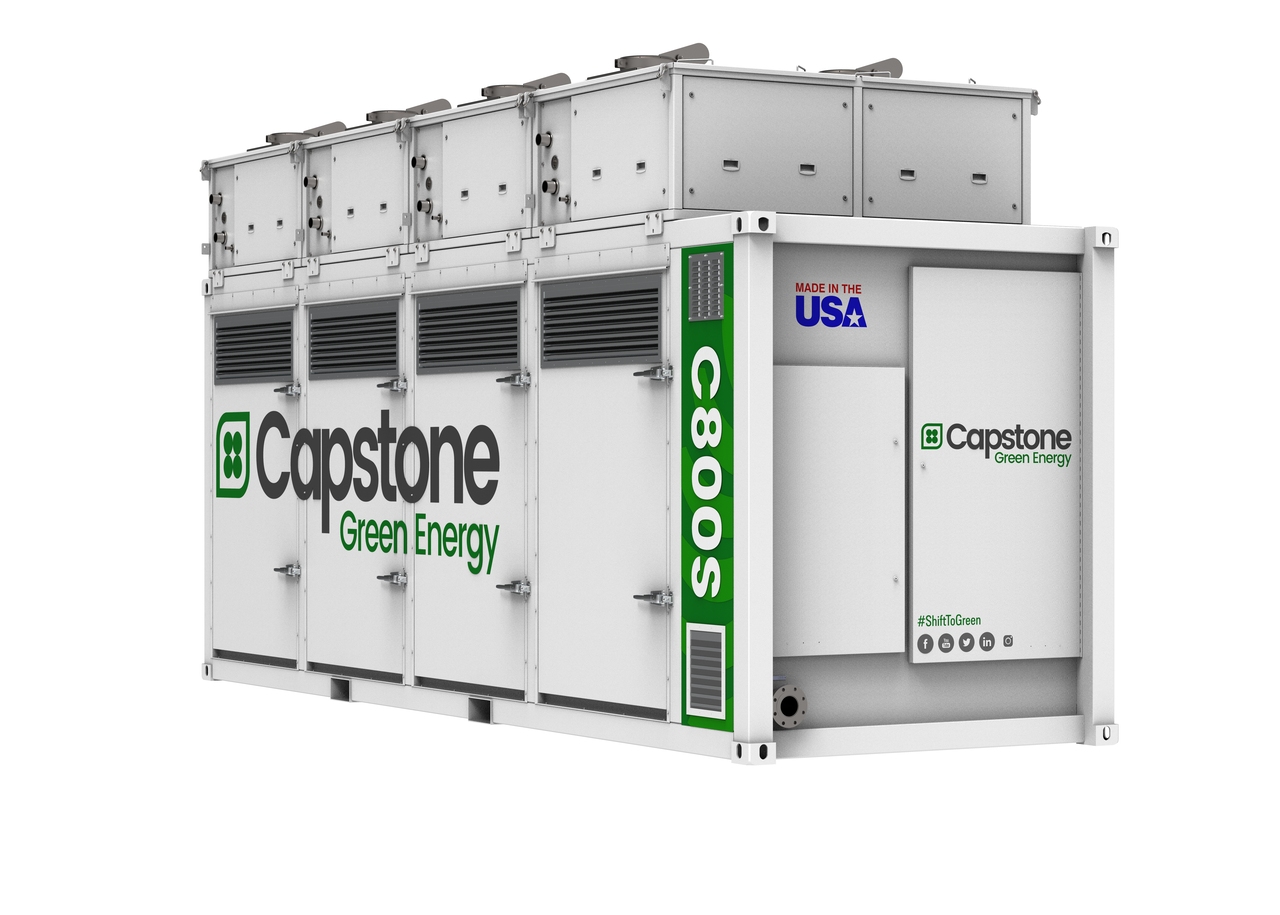

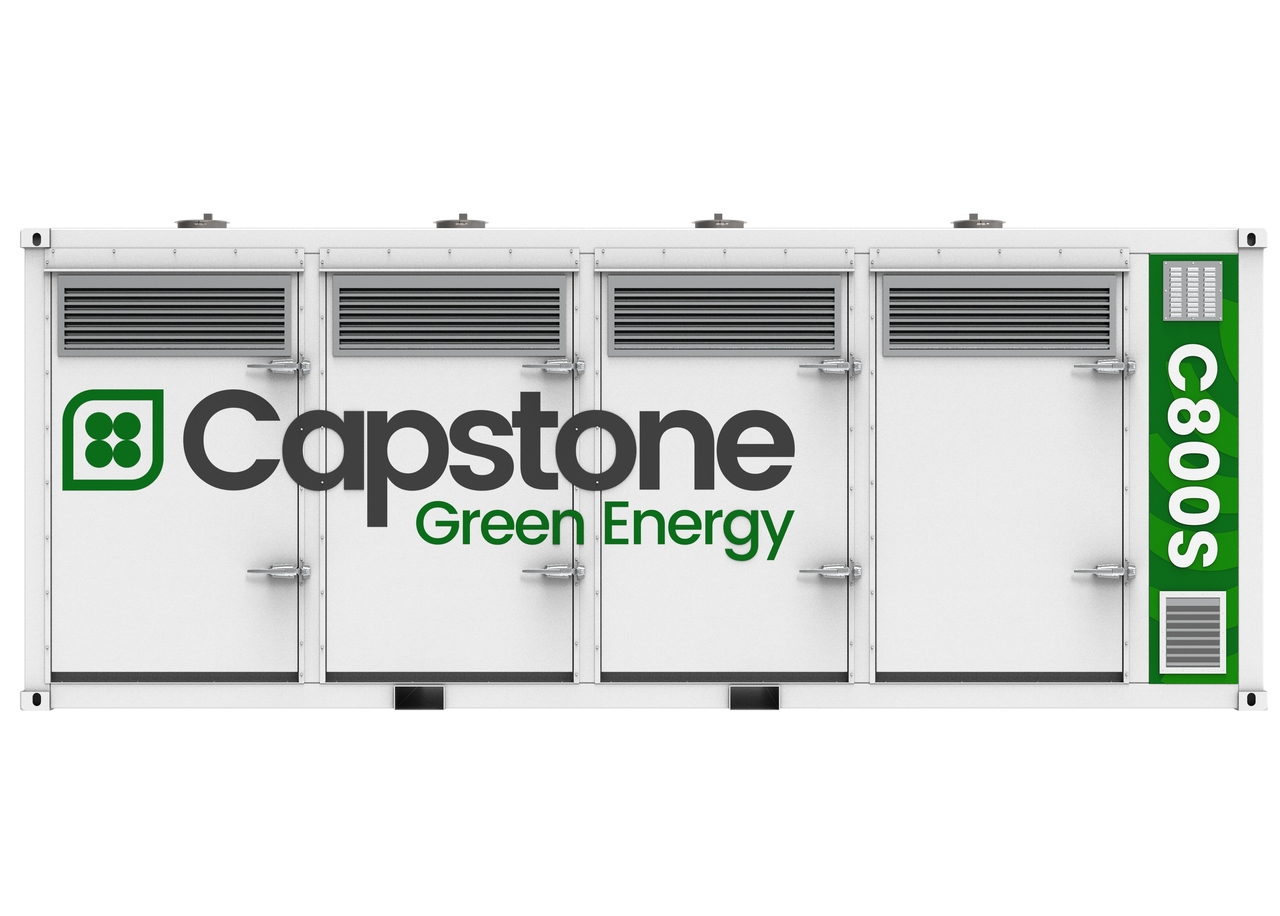

C800S Microturbine
The C800S provides up to 800 kW of electric power and contains four air bearing microturbines.
C800S – 800 KW Turbine
Rating: 800 kW
Electrical Efficiency LHV: 33%
Combined Heat And Power Efficiency:: Up to 90%
Voltage: 400-480 VAC
Frequency: 50/60 Hz, Grid Connect
10-60 Hz, Stand Alone
Electrical Service: 3-Phase, 4-Wire Wye
Width: 3.0 m (117 in)
Depth: 7.5 m (295 in)
Height: 2.9 m (114 in)
Weight: Grid Connect – 14,100 kg (31,100 lbs); Dual Mode – 16,900 kg (37,300 lbs)
Net Heat Rate LHV: 10.9 MJ/kWh (10,300 BTU/kWh)
Exhaust Temperature: 280 ºC (535ºF)
Exhaust Gas Flow: 5.3 kg/s (11.7 lbm/s)
Compatible Fuels: Natural Gas, Liquid Fuels (Ultra Low Sulfur Diesel #2), Biogas (Landfill, Digester), Associated Gas, Sour Gas, LPG
NOTES
- Nominal full power performance at ISO conditions: 59˚F, 14.696 psia, 60% RH
- Height dimensions are to the roofline. Exhaust outlet can extend up to 5 inches above the roofline.
- Specifications based on high pressure natural gas systems. Values may vary with other fuel types.
Specifications are not warrantied and are subject to change without notice.
